Side Mounted bed : The VF series adopts a side mounted structure with a low centre of gravity and more stable processing
Short Tail Cutting : The chuck can move forward, and the cutting stops between the two chucks, which can achieve extremely short tails and save costs short tail with only 30mm
High Dynamic : Lightweight chuck design Low inertia Acceleration up to 1.5G Speed 200r/min Fast response High productivity.
2+1 Chuck Design : Combined clamping by means of two sets of internal and external rollers and auxiliary clamping plates, servo drive and avoidance technology can realise two chucks zero-tailing cutting.
Savings in processes and costs : one machine can complete multiple processes without sawing, drilling or deburring, which reduces processing time , decreases assembly errors and the workload of subsequent processes.

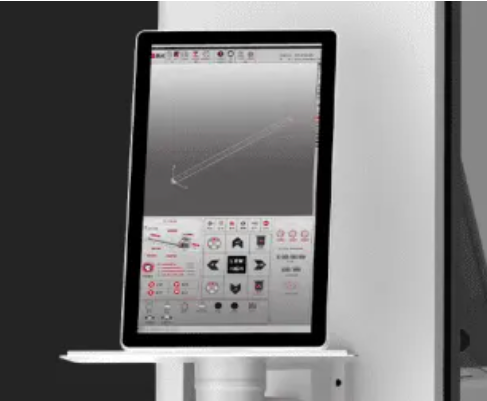

Cutting Systems : With specialized nesting software Tubest, process settings like drawing processing, Co-edge nesting, slit compensation and etc. can be realized, and also parts drawing functions.
Servo Follow-up Support : It can avoid the deformation of the workpiece caused by the sagging of the pipe, higher precision and more stability.
Lifting Door With Protective Glass : Avoid laser damage to human eyes, ensure production and personal safety.
Model : 6012VFH
Laser Power : 1-6kw
Tube Diameter : 8-120mm
Processable Pipe Length : ≤6800mm
Cutting end Material : ≥35mm≥0mm
Chuck Speed : 200r/min
Dimension: 10990*3594*2145mm
