The chuck is one of the core components of the pipe cutting machine. The clamping force, rotation speed and intelligence affect the processing capacity directly. The chuck independently developed by ACME, it’s full-stroke pneumatic chuck, no need to replace the claws within the clamping range, improving production efficiency; Support to cut metal pipes and profiles with a weight of up to 4T and a length of 15m; the eight-cylinder design has a clamping force twice that of ordinary chucks. In addition, it has lots of advantages, such as high precision, fast response, strong load-bearing capacity, stable operation, and high dust-proof level. And each chuck and its part has a code to avoid the chuck being unable to be repaired after years of use.
read more...
Three model side-mounted heavy-duty chucks, low gravity center, much more stable operation. Equipped with high-precision servo motor and gear transmission, achieving multiple chucks rotate synchronously to improve cutting precision and speed. All three chucks are movable, and the middle chuck can move to the right side, allowing the last workpiece to be cut with high quality, achieving zero-tail cutting and reducing material waste.
read more...
Innovative four chucks design, the 3rd and 4th chucks are united to achieve double support. The loading part with 4-point support for stronger load bearing. Supporting the whole piece cutting of special process, realizing zero tail material cutting and high tube utilization. Multi-point clamping in the cutting area, cutting accuracy is improved obviously
read more...
We are a well-known professional manufacturer of tube laser cutting machine in China, have devoted ourselves to the manufacture of high power bevel Tube cutting machine early.

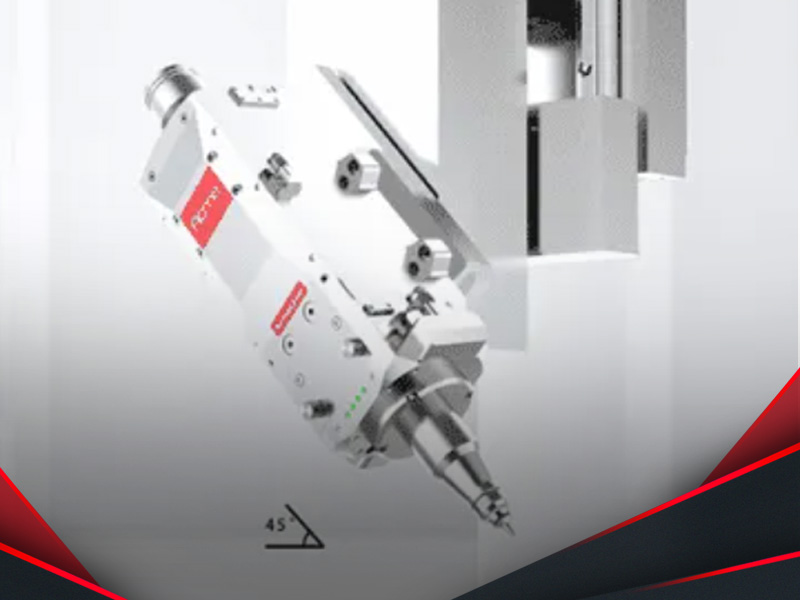

ACME own-designed pendulum head bevelling structure, ordinary laser head can also achieve multi-angle high-precision bevelling ±45°cutting, not only for workpiece cutting, but also for
welded tubes bevel cutting without secondary processing, which improves tube utilisation and bevel-cutting yield, at the same time reducing production costs. It is also friendly for special processes.
We has a large customer base in the heavy Tube cutting industry, such as steel structure, shipbuilding, new energy, photovoltaic, petroleum and other heavy-duty Tube cutting industry.
ACME and the well-known domestic brand Bochu, jointly developed the bevel system;
The bevel drawings generated by the nesting software are used to complete the processing of bevel cutting on the pipe;
Double Y axis cutting improves the cutting accuracy of heavy-duty tubes;
Zero-tail cutting improves the utilization rate of tubes;
Supports 12000-60000W intelligent cutting ACME is based on customer needs and continues to innovate to provide comprehensive metal processing solutions for global customers.
Energy consumption is reduced by 60%
It’s very friendly to the cutting of dense holes. The advantages of static cutting are more obvious after long-term using.
Cutting speed is increased by 20%
Especially for a large number of graphics and need to cut for a long time, the speed is faster.
Cutting speed is increased by 20%
Especially for a large number of graphics and need to cut for a long time, the speed is faster.
Emergency stops are reduced
the working process is softer, and the guide rails and racks can be better protected
